Features

Brand	Jinko Solar
Origin	China
Category	Solar System, Solar Panel, Jinko
Price	Call for Price

Short Description

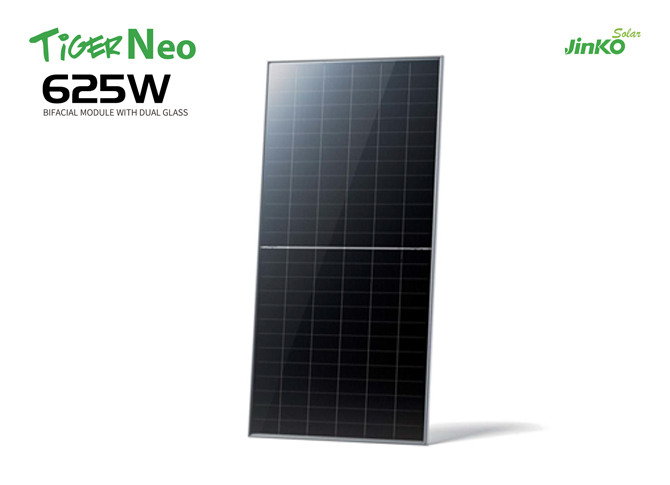

Model: 78HL4-BDV

• Maximum Power - Pmax [Wp]: 625
• Maximum Power Voltage - Vmp [V]: 47.54
• Maximum Power Current - Imp [A]: 13.15
• Open-circuit Voltage - Voc [V]: 56.95
• Short Circuit Current – Isc [A]: 13.80
• Module Efficiency STC [%]: 22.36

Specifications

Mechanical Characteristics
Cell Type: N- type Mono-crystalline
No. of cells: 156 (78×2)
Dimensions: 2465×1134×30 mm
Weight: 34.0 kg
Front Glass: 2.0 mm, Anti-Reflection Coating
Back Glass: 2.0 mm, Heat Strengthened Glass
Frame: Anodized Aluminium Alloy
Junction Box: IP68 Rated

Specification
Maximum Power - Pmax [Wp]: 625
Maximum Power Voltage - Vmp [V]: 47.54
Maximum Power Current - Imp [A]: 13.15
Open-circuit Voltage - Voc [V]: 56.95
Short Circuit Current – Isc [A]: 13.80
Module Efficiency STC [%]: 22.36
Power Tolerance: 0 ~ + 3 %
Temperature Coefficients of Pmax: -0.29 %/°C
Temperature Coefficients of Voc: -0.25 %/°C
Temperature Coefficients of Isc: 0.045 %/°C
