Features

Brand	BDCOM
Origin	China
Category	Computer Science and Engineering, Network Switch, BDCOM
Price	Call for Price

Short Description

Model: S1526-24P

• 24 Gigabit PoE ports
• 8K MAC capacity
• 52Gbps switching capacity
• 2GE Uplink SFP

Specifications

Main Feature
Port: POE port 24GE
MAC Address Table: 8K
Environment: Operating temperature/humidity: -10°C~50°C,10%-90% non-condensing
Storage temperature/humidity: -40°C~70°C,5%-95% non-condensing

Hardware Features
Interface: Uplink SFP 2GE
Power Supply: Built-in AC: 100~220V, 50Hz±10%
Dimensions (L x W x H): 440×208×44
Weight: 2.8

Manufacture Warranty
Warranty: 1 Year

Description

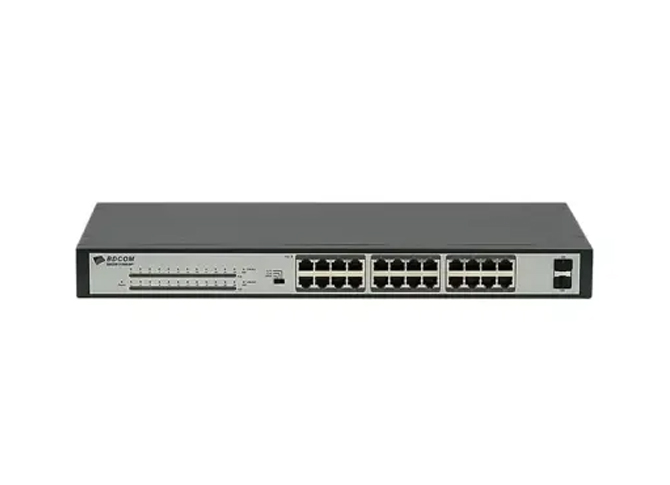

BDCOM S1526-24P 24-port Full-gigabit Multi functional PoE Switch
The BDCOM S1526-24P is a full-gigabit smart PoE switch with a large buffer memory and integrated professional thunder-proof circuit. It is ideal for video surveillance and wireless coverage in medium and small networks. It has 24 Gigabit PoE ports that support IEEE 802.3af/at standard and can provide up to 30W of power per port. It also has 2 gigabit SFP ports for uplink connections. The BDCOM S1526-24P Multi functional PoE Switch has a 52Gbps switching capacity and supports storage-and-forward mode for reliable data transmission. The switch has a built-in AC power supply that can work with 100~220V AC input voltage. BDCOM S1526-24P PoE Switch has a functional dip switch that allows users to choose between standard working mode, CCTV mode, and VLAN isolation mode. The switch has a 400W power consumption and a 370W PoE power budget. The BDCOM S1526-24P switch can operate in a temperature range of 0℃-40℃ and can be stored in a temperature range of -40℃-70℃. The switch has a dimension of 440 x 208 x 44mm and a weight of 2.8kg.
