Features

Brand	Fujikura
Origin	Japan
Category	Computer Science and Engineering, Security System, Optical Fiber Splicer
Price	Call for Price

Short Description

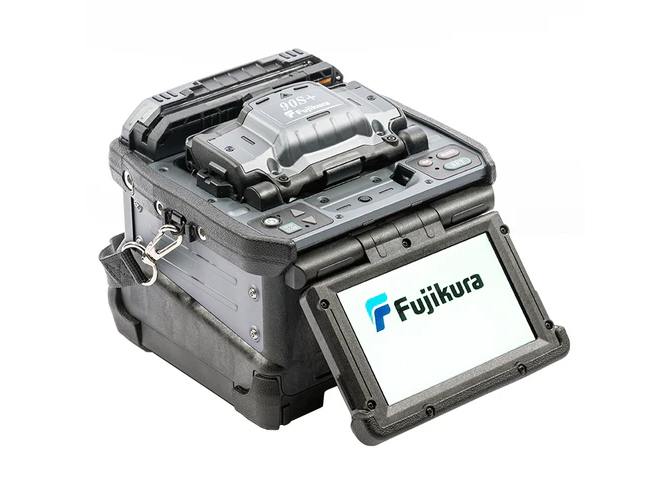

Model: Fujikura 90S+

• Cleaver tracking and upkeep with wireless communication
• Improved real-time arc control for fibers with poor cleave angles
• Automated wind protector, sheath clamps and splice operation
• Loose and tight buffer with same sheath clamp
• Lithium-ion battery with 300 splices/shrinks per charge
• PC software and 90S+ manual downloaded from splicer
• Multi-function transit case with integrated workstation

Specifications

Fibre Alignment Method: Active Core Alignment
Fibre Count Can Be Spliced: Single Fibre
Fibre Type: Singlemode, Multimode
Cladding Diameter: 80 to 150μm
Sheath Clamp Coating Diameter: Max. 3000μm
Sheath Clamp Cleave Length: 5 to 16mm (Depending on Type)
Splice Loss: ITU-T G.652 : Avg. 0.02dB, ITU-T G.651 : Avg. 0.01dB, ITU-T G.653 : Avg. 0.04dB, ITU-T G.654 : Avg. 0.04dB, ITU-T G.655 : Avg. 0.04dB
ITU-T G.657 : Avg. 0.02dB
Splice Time: SM FAST mode: Avg. 7 to 9sec., AUTO mode: Avg. 14 to 16sec.
Sleeve Type: Heat shrinkable sleeve
Sleeve Length: Max. 66mm
Sleeve Diameter: Max 6.0mm before shrinking
Sleeve Heat Time: 60mm slim mode: Avg. 9 to 10sec., 60mm mode: Avg. 13 to 15sec.
Fibre Tensile Test Force: Approx. 2.0N
Electrode Life: Approx. 5000 splices
Dimensions (WxDxH): Approx. 170mm x 173mm x 150mm
Weight: Approx. 2.8kg
Operating Temperature: -10 to 50C
Storage Temperature: -40 to 80C
Max Altitude: 5000m
AC Adaptor: AC100 to 240V, 50/60Hz, Max. 1.5A
Battery Type: Rechargeable Lithium Ion
Battery Output: Approx. DC14.4V, 6380mAh
Battery Capacity: Approx. 300 splice and heat cycles
Battery Temperature: Recharge: 0 to 40C
Storage: -20 to 30C
Battery Life: Approx. 500 recharge cycles
LCD Monitor: TFT 4.9" With Touch Screen
Display Magnification: 200 to 320x
Illumination: LED lamp
PC Interface: USB2.0 Mini B Type
External LED Lamp: USB2.0 A Type Approx. DC5V, 500mA
Ribbon Stripper:Mini DIN 6pin DC12V, Max. 1A
Wireless Interface: Bluetooth 4.1 LE
Splice Mode Storage: 100 Modes
Heat Mode Storage: 30 Modes
Splice Result Storage: 20000 Splices
Splice Image Storage: 100 Images
Screw Hole For Tripod: 1/4-20UNC

Description

The Fujikura 90S+ core alignment fusion splicer solves common problems seen in the field— from splicing poor quality legacy fiber to automated equipment maintenance and upkeep.  The Fujikura 90S+ can be use in multiple field splicing applications including bend-insensitive  fibers in drop cables, long-haul terrestrial and submarine LEAF® fibers, loose buffer fiber,  splice-on connectors, and the list goes on. The speed and accuracy of the 90S+ make it  suitable for certain production and specialty environments where high output, tight packaging,  and low loss requirements are required.
Regardless of your scenario, the Fujikura 90S+ is designed to keep you in the field with an  extended battery life of 300 splice and heat cycles. With its multiple automated and easy-to use features, the 90S+ alleviates the need for traditional operation tasks such as frequent arc  calibrations, cleaver blade rotations, cleaver usage tracking, and manual splicing operations. A redesigned work tray, cooling tray, and optional cable clamp make the 90S+ kit more  versatile than its predecessors in adapting to varying work conditions and environments.
When splicing loose buffer fiber, additional sheath clamps are not needed. The standard  universal sheath clamp now handles both loose and tight buffer fibers. The new Active Fusion  Control (AFC) technology improves splice losses for fibers that possess a poor cleave angle.  Combined with Active Blade Management between the splicer and cleaver, the Fujikura  90S+ contains a robust set of splicing features that will reduce the likelihood of poor splice  installations or repairs.

Applications

• Distribution fiber repair
• Long-haul network installation
• Field termination with splice-on connectors
• Access network installation
• Fanout kits, pigtails and splice cassettes
• OSP cable installation and repair
• Optical modules – splitters, couplers,  MUXs, EDFAs and attenuators
