Brand	RADWAG
Origin	Poland
Category	Food Engineering, Balance & Scale, Platform Scale
Price	Call for Price

Short Description

Model: C315.15.F1.K

• Maximum capacity [Max] 15 kg
• Minimum load 100 g
• Readability [d] 5 g
• Verification unit [e] 5 g
• Tare range -15 kg
• Max readability for non-verified scale 0.5 g
• OIML Class III

Specifications

Metrological parameters
Maximum capacity [Max]: 15 kg
Minimum load: 100 g
Readability [d]: 5 g
Verification unit [e]: 5 g
Tare range: -15 kg
Max readability for non-verified scale: 0.5 g
OIML Class: III

Physical parameters
Display: LCD (backlit)
Weighing pan dimensions: 300×300 mm
Packaging dimensions: 570×390×170 mm
Net weight: 5.2 kg
Gross weight: 5.5 kg
Cable length: 1 m
Relative humidity: 10% — 85% RH no condensation
Indicator: C315

Construction
Protection class: IP 65 construction, IP 43 indicator
Construction: mild steel St3S
Weighing pan material: stainless steel AISI304

Communication interface
RS232 Interface: 1× standard, 1× option

Electrical parameters
Power supply: 100 – 240 V AC 50/60 Hz and battery
Power consumption max.: 5 W
Operation time on batteries: max 8h

Environmental conditions
Operating temperature: -10 — +40 °C
Storage temperature: -10 — +50 °C

Description

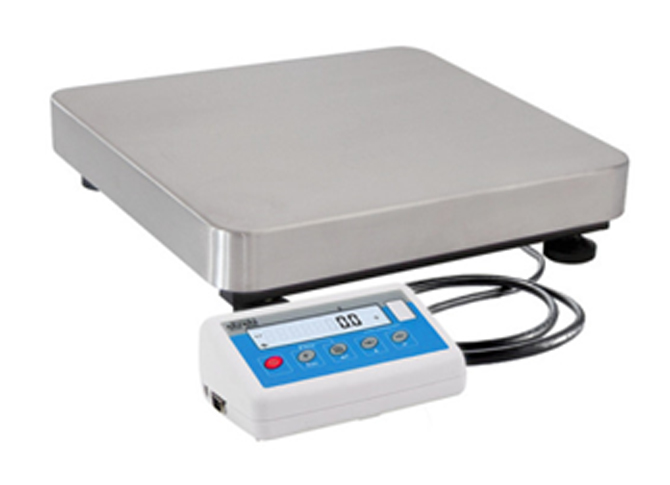

C315 Load Cell Platform Scale
Precision weight determination in light industrial environments at an even lighter price. Wherever fast weighing is important.

The C315 scale
is equipped with the PUE C315 weighing terminal with a backlit LCD display. This long-established technology guarantees reliability and low power consumption, and most importantly, a very long display life.

Don’t worry about robustness
The construction of the scale is made of powder-coated steel with a stainless steel weighing pan. This guarantees you work for many years, and what’s more, powder-coated steel is more environmentally friendly than traditional painting methods.

Don’t worry about robustness
The construction of the scale is made of powder-coated steel with a stainless steel weighing pan. This guarantees you work for many years, and what’s more, powder-coated steel is more environmentally friendly than traditional painting methods.

You will not run out of energy
The scale has two power sources: mains and rechargeable. Thanks to its well-designed electronics and LCD display, the device consumes only 5W of energy, which will allow you to work for up to 8 hours without mains power.
