Features

Brand	Optika
Origin	Italy
Category	Food Engineering, Lab Equipment, Microscope & Telescope, Optika
Price	BDT 120,000.00

Short Description

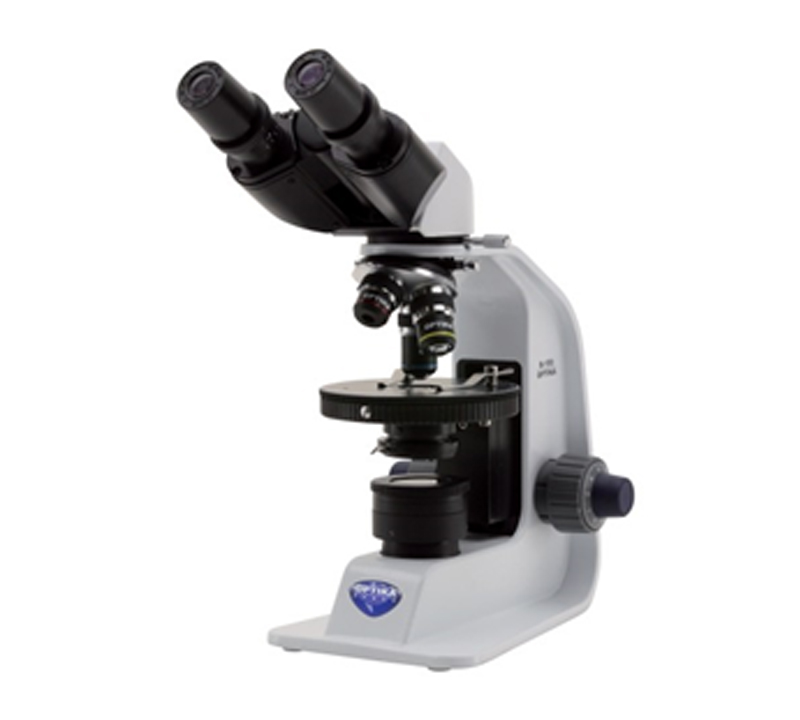

Model: B-150P-BRPL

• Observation mode: Brightfield, Polarized Light.
• Head: Binocular, 30° inclined; 360° rotating.
• Eyepiece: WF10x/18 mm, secured by screw.
• Nosepiece: Quadruple ball bearings revolving nosepiece.
• Objectives:
  - N-PLAN 4x/0.10, with anti-fungus treatment
  - N-PLAN 10x/0.25 , with anti-fungus treatment
  - N-PLAN 40x/0.65 , with anti-fungus treatment
• Specimen stage: Rotatable round stage, 120 mm diameter.

Specifications

Observation Method Transmitted Light
Brightfield - Yes
Simple polarized light - Yes
Main Body
Type - Upright
Construction material - Aluminum die-cast

Head
Type - Binocular (Siedentopf)
Inclination - 30°
360° rotating - Yes
Interpupillary distance (mm) - 48-75
Dioptric adjustement - On left tube
Fixing screw for eyepieces - Yes
Tube inner diameter (mm) -23

Eyepieces
Field number (mm)- 18
Magnification - 10x
High eyepoint (for glass wearers) - Yes
Pointer - As optional
Micrometric scale - As optional
Diameter of micrometer glass (mm) -20

Nosepiece
Positions - Quadruple
Bi-directional - Yes
Rotation on ball bearings - Yes
Objective thread - RMS

Condenser Single Position
Type- Fixed
Numerical aperture (N.A.) - 1.25
Diaphragms - Iris
Centrable - Pre-centered

Focusing System
Type - Coaxial coarse & fine
Coarse total travel (mm)- 16
Fine total travel (per single rotation) (mm) -0.4
Fine graduations - 100
Fine resolution (um) -4
Upper stop to prevent contact - Yes
Adjustable tension - Yes

Transmitted Illumination
Type -X-LED
X-LED type - X-LED1
Light source power (W)- 1
Brightness control - Manual

Lifetime (hours) -> 65,000
Temperature (K) - 6,300
Max. required power (W)- 1.5
Type - External

Power Supply for Transmitted Illumination
Microscope connector- Jack, 2.1 mm
Power plug type- Multi-plug (EU, UK, US)
Input voltage-100/240 Vac, 50/60 Hz
Output voltage-5 Vdc 500 mA
LED indicator- Yes
Rechargeable batteries- Yes
Battery type- Li-ion (battery pack)
Working time of batteries (hours) -15
Charging time of batteries (hours)- 6

Accessories Included
Dust cover- Yes
Tension adjustment tool- Yes
User Manual- Digital version (downloadable)

Additional Information
Rotating polarizer (swing-out) and fixed analyzer (sliding-out) filters

Product Dimensions
Height (mm)-350
Width (mm)-170
Depth (mm)-320

Product Weight (kg)
4Kg

Warranty: 01 (One) year warranty from the date of installation.

Installation & Training: Free installation, operation & maintenance training will be provided at your laboratory site.

Description

Observation mode: Brightfield, Polarized Light.
Head: Binocular, 30° inclined; 360° rotating.
Eyepiece: WF10x/18 mm, secured by screw.
Nosepiece: Quadruple ball bearings revolving nosepiece.
Objectives:
– N-PLAN 4x/0.10, with anti-fungus treatment
– N-PLAN 10x/0.25 , with anti-fungus treatment
– N-PLAN 40x/0.65 , with anti-fungus treatment
Specimen stage: Rotatable round stage, 120 mm diameter.
Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
Condenser: N.A. 1.25, pre-centered, fixed with iris diaphragm.
Illumination: X-LED1 with white 1 W LED and light intensity control.
Color temperature: 6,300 K. Li-Ion battery for long lasting operation. Multi-plug 100-240Vac/5Vdc external power supply.
Polarizing filters: Rotating Polarizer (swing-out) and fixed Analyzer (sliding-out).
