Features

Brand	WTW
Origin	Germany
Category	Food Engineering, Lab Equipment, Laboratory Equipment, Turbidity Meter
Price	Call for Price

Short Description

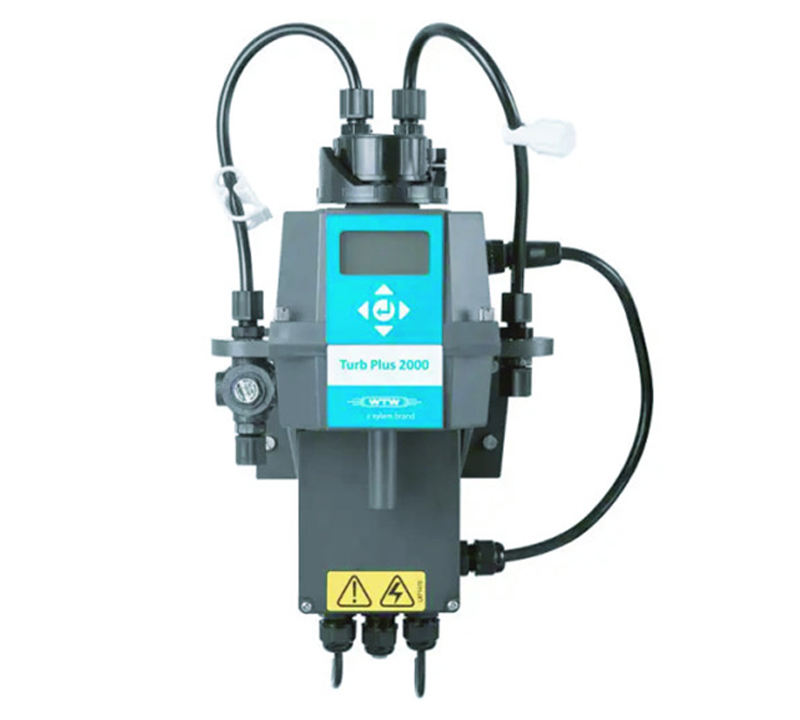

Model: Turb PLUS 2000

• Standard-compliant turbidity measurement with ultrasonic cleaning, according to US EPA 180.1 and DIN EN ISO 7027.
• Nephelometric turbidity meter with white (US EPA 180.1) or infrared light (EN ISO 7027), with ultrasonic cleaning:
• Safe measurements by integrated bubble trap and ultrasonic cleaning
• Easy calibration with standards that are traceable to Formazine

Specifications

Measurement principle: Scattered light measurement white light, nephelometric measurement
Measurement Range: Factory setting: 0 ... 100 NTU; optional measuring ranges 0 ... 10 and 0 ... 1000 NTU (loaded on USB)
Resolution: Down to 0.0001 NTU
Accuracy: ±2 % of reading or ±0.02 NTU below 40 NTU whichever is greater (0–100 and 0–1000 ranges) | ±5 % of reading above 40 NTU (0–100 and 0–1000 NTU ranges) | ±2 % of reading or ±0.02 NTU (0–10 NTU range)
Limit of Detection: 0.02 mg/l
Response time: Adjustable (1 ... 60 readings)
Sample Temperature: 1 °C ... 50 °C (34 °F ... 122 °F)
Sample Flow Rate: 100 ml/min. ... 1.5 liter/min. (0.026 0.40 Gal/min)
Maximum Water Pressure: Integral pressure regulator rated 7 bar (101.5 PSI)
Cleaning: Ultrasonic cleaning
Calibration: Factory calibrated to 0 100 NTU, recalibration required every three months and after change of measuring range
Display: Multi-Line Liquid Crystal Backlit Display
Mounting: Wall mounting with 6 screws
Regulatory Compliance: Compliant to U.S. EPA 180.1 Compliant to DIN EN ISO 7027
Power: 100–240 V AC, 47–63 Hz, 80 VA
Relays: Two Programmable, 120–240 V AC 2A Form C Relay
Analog Output: One powered 4–20 mA, 1000 W drive
Digital Output: Bi-directional RS-485, Modbus RTU
Environmental conditions: Storage Temperature Range: 1 °C ... 50 °C (34 °F 122 °F) | Operating Temperature Range: 1 °C ... 50 °C (34 °F 122 °F) | Relative Humidity: Up to 95 % (non-condensing) Not recommended for outdoor use. Altitude up to 2000 meters.
Certification: CE, cETLus | CE Approved, LC listed to UL 61010-1 3rd Edition: 2012 LC: Certified to CSA 22.2 No.61010-1-12: 2012
Mechanics: Wetted Materials: Nylon, Wetted Materials: Nylon, Borosilicate Glass, Silicone, Polypropylene, Stainless Steel, Viton, Acety | Housing: ABS (Double Insulated, Pollution Degree 2, Overvoltage Category II)
Weight: 2.8 kg (6.2 lbs.)
Warranty: 2 years on defects in quality according to § 10 terms of conditions

Description

Standard-compliant turbidity measurement with ultrasonic cleaning, according to US EPA 180.1 and DIN EN ISO 7027.
Nephelometric turbidity meter with white (US EPA 180.1) or infrared light (EN ISO 7027), with ultrasonic cleaning:
Safe measurements by integrated bubble trap and ultrasonic cleaning
Easy calibration with standards that are traceable to Formazine
Standard-compliant measurement according to US EPA 180.1 and DIN EN ISO 7027, respectively
High accuracy, especially below 40 NTU
The nephelometric turbidity meters of series Turb PLUS 2000 are designed for drinking water monitoring. By using white or infrared light and the respective standards, the meters meet the requirements of the US EPA 180.1 as well as those of the DIN EN ISO 7027. Instrument with white as well as infrared light are equipped by default with an integrated bubble trap and ultrasonic cleaning, which saves time and effort. If needed, a set with additional external bubble trap is available.
Calibration solutions need to be ordered separately.
Turb PLUS 2020: Online turbidity meter, with white light and integrated bubble trap; nephelometric measurement specified according to US EPA 180.1, with ultrasonic cleaning 110–240 VAC.
Turb PLUS 2120: Online turbidity meter, with infrared light and integrated bubble trap; nephelometric measurement specified according to DIN EN ISO 7027, with ultrasonic cleaning 110–240 VAC.
Turb PLUS 2120 Set: Turb PLUS 2120 including external bubble trap
