Features

Brand	Optika
Origin	Italy
Category	Food Engineering, Lab Equipment, Microscope & Telescope, Optika
Price	BDT 70,000.00

Short Description

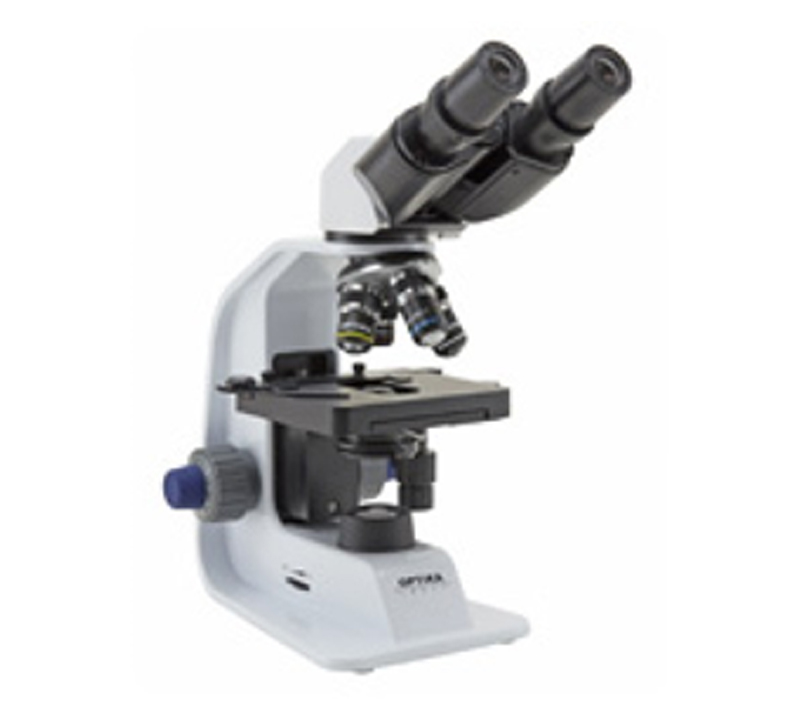

Model: B-159

• Head: Binocular, 30° inclined; 360° rotating.
• Dioptric adjustment: Left eyepiece.
• Eyepieces: WF10x/18 mm, high eyepoint, secured by screw.
• Nosepiece: Quadruple ball bearings revolving nosepiece.
• Objectives:
  - Achromatic HC type 4x/0.10
  - Achromatic HC type 10x/0.25
  - Achromatic HC type 40x/0.65
  - Achromatic HC type 100x/1.25 (oil/water)

Specifications

– Achromatic HC type 4x/0.10
– Achromatic HC type 10x/0.25
– Achromatic HC type 40x/0.65
– Achromatic HC type 100x/1.25 (oil/water).
All with anti-fungus treatment.

Specimen stage: Mechanical stage, 125×116 mm, 70×30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1 mm.

Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
Condenser: Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm.
Illumination: X-LED1 with white 1 W LED and brightness control.
Color temperature: 6,300 K. Multi-plug 100-240Vac/5Vdc external power supply.

Warranty: 02 (One) year warranty from the date of installation.
Installation & Training: Free installation, operation & maintenance training will be provided at your laboratory site.

Description

Binocular microscope ideal for students and primary schools, with four achromatic lenses (1000x), FN 18 high eyepoint eyepieces, finite optical system, coaxial focusing, mechanical stage, Abbe condenser and powerful, uniform, white color temperature 1 W X-LED1 illumination. Slim and easy to carry, it is equipped with all the main controls to start learning how to use an advanced microscope and with long lasting LED illumination to provide over 20 years of use

Head: Binocular, 30° inclined; 360° rotating.
Dioptric adjustment: Left eyepiece.
Eyepieces: WF10x/18 mm, high eyepoint, secured by screw.
Nosepiece: Quadruple ball bearings revolving nosepiece.
