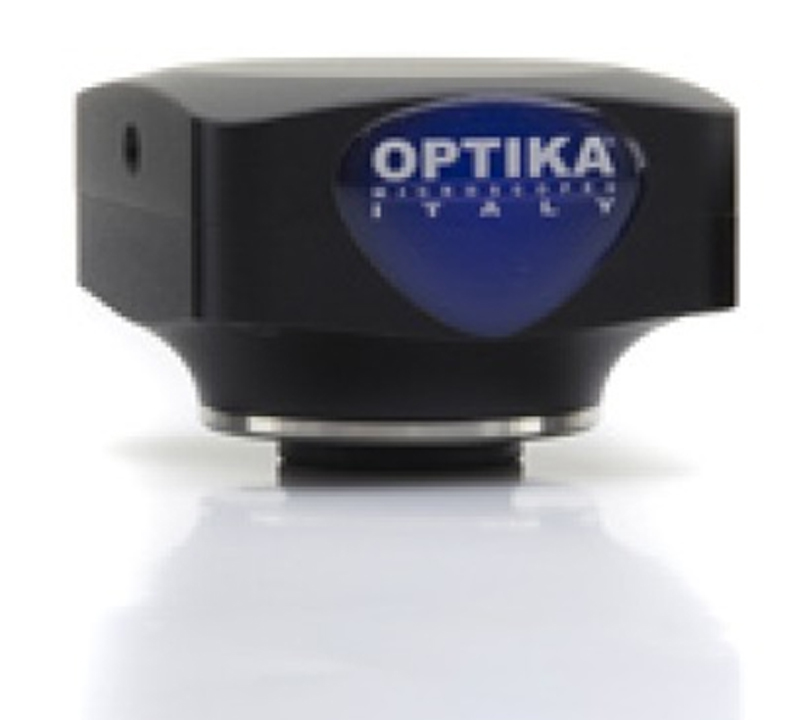

Camera for Microscope (MP) 5.1 pixels: 2592×1944

PC Camera resolution (MP): 5.1
Camera resolution (n° of pixels: W x H): 2592×1944
USB Signal output: USB 2.0
Color / Monochrome: Color
Sensor Size: 1/2.5″
Sensor Technology: CMOS
Sensor Type: APTINA CMOS
Rolling Shutter: Yes
Image Format: 3-Apr
Pixel Size (mm): 2.2×2.2
Frame rate full resolution (fps): 7@2592×1944
Frame rate other resolution (fps): 27@1280×960; 90@640×480
Sensitivity: 0.53 V/lux-second
Signal/noise Ratio (DB): 40.5
Dynamic range (DB): 66.5
ADC conversion    : 8 Bit
Color Depth: 1, 4, 8, 24 Bit
Exposure time: 0.294 msec – 2 sec
Binning: 1×1; 2×2; 4×4
IR filter: Yes
IR filter range (nm): 380-650 (IR CUT)
Cooling Temperature: None
Camera Power: PC USB
C-Mount: Yes
Dimensions (mm): 58 x 58 x 36.4
Weight (Kg): 0.18

Camera Accessories
Optical adapter (for 23mm eyepiece tube): 0.5x
Adapter ring: Yes
Diameter of adapter ring (mm): 30
Diameter of adapter ring (mm): 30.5
Calibration slide    : Yes
USB cable (1.8m): Yes

Environment  Specifications
Working Temperature: -10°C up to +50°C
Storage Temperature: -20°C up to +60°C
Relative Humidity: 30% to 80%
Storage Humidity: 10% to 60%

Operating System
OS: Windows 7
OS: Windows 8
OS: Windows 10 (32Bit)
OS: Windows 10 (64Bit)
OS: Osx (MAC Osx) starting from 10.7.5
OS: Linux

Available Software
SW: PROVIEW
SW: LITEVIEW

PC Requirements
PC: CPU: Intel Core2 – 2.8GZ or higher
PC: RAM: 2GB or more
PC: USB 2.0

Warranty
2 Years
