The Electronics Trainer with Module Package is a versatile and compre- hensive learning system designed for practical experimentation in electronics. It integrates multiple measuring instruments, including a multimeter, function generator, and power supply, into one unit. The system allows learners to conduct analog and digital experiments using a variety of modules docked onto a main platform. Features include fixed and variable DC/AC power supplies with built-in overload and short circuit protection for safety.
The package offers modules covering essential topics like Ohm’s Law, AC/DC circuits, signal conversion, digital logic, diode and transistor characteristics, oscillators, operational amplifiers, sensor circuits, and pulse circuits. It also includes a breadboard module for flexible circuit configurations. The trainer is ideal for hands-on learning in electronics, covering a wide range of concepts from basic circuit theory to advanced semiconductor applications.

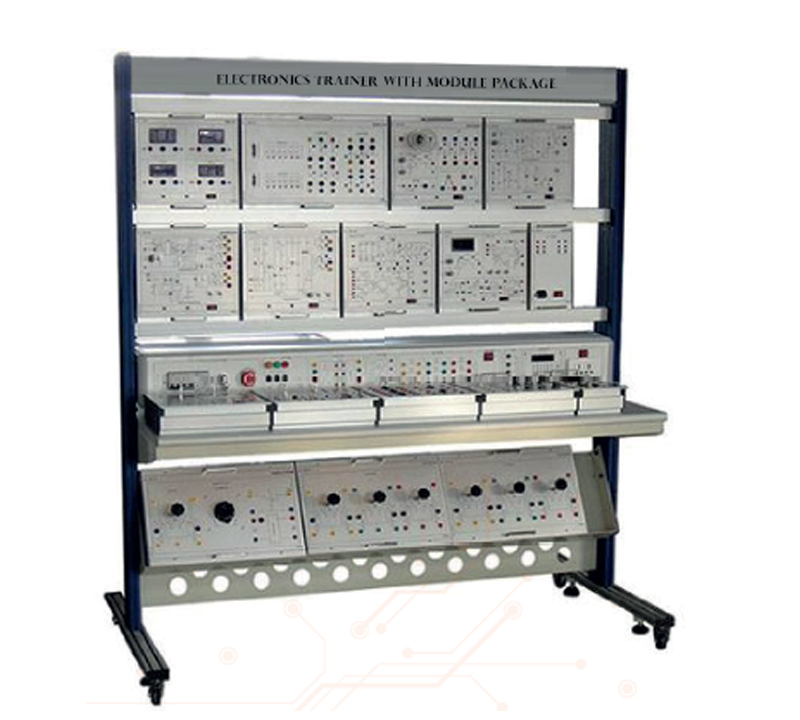

Electronics Trainer With Module Package (FT-ETM25L)
Model : FT - ETM25L
- Comprehensive measuring instrument with multi-meter, function generator, power supply all-in-one.
- Practice measuring the characteristics of each module of electronic circuit using measuring equipment.
- DC + 5V, ± 15V fixed voltage, DC variable power supply, AC variable power supply for analog and digital experiment.
- For safety, overload and short circuit protection circuit attached to the power supply of main unit module.
- The main body is able to be docked or plugged and combine the training module.
- Possible to configure the circuit by using breadboard, and to be mounted on the multi-experiment module or to be detachable to the main body.
Experiment Content:
Ohm’s Law Experiment
RC Circuit and Transient Response
Diode Bridge Rectifier
Inverting and Non-Inverting Amplifier Design
Basic Logic Gates and Flip-Flops
Temperature Sensor Circuit
Phase Shift Oscillator
AC Voltage Measurement
Zener Diode Voltage Regulation
Capacitance and Inductance Measurement
LC Resonance Circuit
A/D and D/A Converter Circuit
Characteristics of NPN and PNP Transistors
Differential Amplifier Design
Monostable and Bistable Multivibrator Circuit
- Comprehensive measuring instrument with multi-meter, function generator, power supply all-in-one.
- Practice measuring the characteristics of each module of electronic circuit using measuring equipment.
- DC + 5V, ± 15V fixed voltage, DC variable power supply, AC variable power supply for analog and digital experiment.
- For safety, overload and short circuit protection circuit attached to the power supply of main unit module.
- The main body is able to be docked or plugged and combine the training module.
- Possible to configure the circuit by using breadboard, and to be mounted on the multi-experiment module or to be detachable to the main body.
Specifications:
Basic Panel
The basic panel works as the main platform where other modules will be docked or plugged.
Consists of power supply for boards.
DC Circuit Experiment Module Topic coverage:
Ohm’s Law
Serial/Parallel Circuit Kirchhoff’s Law
Galvanometer
AC/DC Circuit Experiment Module Topic coverage:
Capacitance
Inductance
RC/RL circuit
LC resonance (Series/Parallel)
AC/DC voltage measurement A
C/DC current measurement
Ohm’s Law
Kirchhoff’s Law
Series-parallel combination circuit
Thevenin’s theorem
Newton’s theorem
DC circuit (RC) and transient phenomenon
AC circuit (RC/RL/RLC)
Characteristics of transformer
Resonant circuit (series/parallel) and LC filter
Signal Conversion Circuit Experiment Module Topic coverage:
A/D converter
D/A converter
F/V converter
V/F converter
Digital Logic Experiment Module Topic coverage:
Diode Logic
AND gate
OR/XOR gate
Inverter
JK flip-flop
RS flip-flop
Counter
Shift register
Decoder
Encoder
Half adder/Full adder
Multiplexer/De-multiplexer
Diode circuit with voltage regulation module Topic Coverage:
Bridge rectifier
Voltage regulator
Diode/Zener diode
Rectifier circuits
Filter circuits
Characteristics of transistor
Characteristics of LED
Oscillator Experiment Module Topic coverage:
Phase shift oscillator
Colpitts oscillator
Hartley oscillator
Crystal oscillator
Semiconductor
Circuit Experiment Topic coverage:
Diode characteristics
Zener diode
NPN Transistor
PNP Transistor
J-FET characteristics
MOS-FET characteristics
SCR characteristics
TRIAC characteristics
OP-AMP Circuit Basics and Application Experiment Topic coverage:
Amplifier biasing
Complementary Amplifier
Common emitter Amplifier
Darlington Amplifier
Inverting amplifier
Non-Inverting Amplifier
Differential Amplifier
Summing Amplifier
Push Pull Amplifier
Filter Circuit Topic coverage:
Low pass filter,High pass filter,Band pass filter
Sensor Circuit Experiment Topic coverage:
Temperature sensor circuit experiment,
Photoelectric sensor experiment,
Hall effect sensor circuit experiment,
Humidity Sensor Circuit Experiment,
Gas Sensor Circuit Experiment,
Pulse Circuit Module Topic coverage:
Clipper circuit
Schmitt trigger
Bistable multivibrator
Monostable multivibrator
Breadboard Module Topic coverage:
Voltage: DC 5V, -15V, +15V
Variable voltage
Variable resistor: 1kΩ
Toggle switch
LED indicator lamp
Digital I/O; Relay output (A)
Sensor Block3: +5V, +3.3V, GND, SPI, GPIO
Sensor Block4: +5V, +3.3V, GND, ADC, GPIO
Main Board Size: Minimum 460 X 310 (mm)
Sensor Pack:
Flame Module:
Sensing Range: 60 Degree
Eco Sensor Module:
Light Sensor: Illuminance to digital converter; Wide range: 1~ 65535(lx)
Temperature Measure: -40 ~ 85 or higher
Humidity Measure: 0 ~ 100%r.H.
Pressure Range: 300 ~ 1100hPa or higher
VOC Measure: Ethane, Ethanol, Acetone, Carbon Monoxide, Butadiene, methyl
Carbon Dioxide (CO2) Gas Sensor Module:
Measuring Range: 0 ~ 10000 ppm or higher
Accuracy: ±7%~±50ppm or better
Pixel Display:
Color: Pixel RGB
Pixel: 8x8
Digital Thermopile Module Laser (DTPML):
IR Refresh Rate: 50Hz
Digital Resolution: 0.1
Accuracy: ±2% or better
Microwave Motion Sensor Module:
Frequency Setting: 10.525 GHz (Typ)
Spurious Emission: -7.3 dBm
Pulse Repetition Frequency: 2KHz
IR Receiver Module:
Carrier Frequency: 38kHz
PIR Senor Module:
Sensing Range: 110°
Spectral Response: 5 ~ 14 um
Accessories:
Single-phase power cord
4mm Banana Socket-1Set
User Manual
Others:
Country of Origin: China
Manufacturing: Assemble in Bangladesh
Inatallation
3 Days Training
Warranty: 01 year
